Emergency Assembly Point & Evacuation Signage Explained

Walk around most Australian workplaces and you will find at least two different green signs doing two different jobs: one marking the muster point outside, and one pointing the way to get there. Both tend to get filed under the same mental category as exit signs, and that is where the standards get muddled. This guide sets out what assembly point and evacuation signage actually is, which Australian Standard governs it, and where each sign type belongs on a real site.

What assembly point and evacuation signage actually is

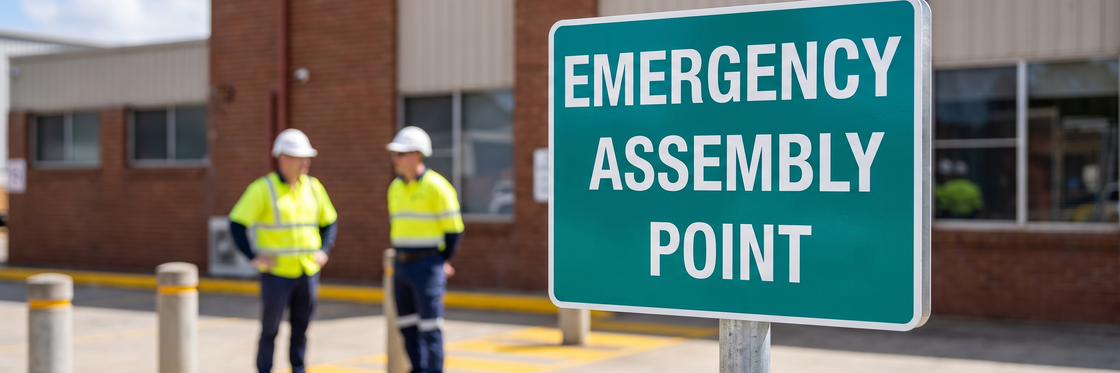

An Emergency Assembly Point sign marks the spot where everyone gathers once they are out of the building: a single, fixed location a warden can walk to and run a headcount from. Evacuation route signs, sometimes called evacuation direction signs, are the arrows and wording along the way that get people from wherever they are to that point, ideally without anyone having to stop and think about it.

Both are different again from the illuminated EXIT signs mounted above doorways inside a building, which are covered in our guide to emergency and exit signs . An exit sign tells you which door to use right now. Assembly point and evacuation signage tells you where to go once you are through it, and keeps you moving until the whole site is accounted for.

AS 1319, not AS 2293: the standard that actually governs this signage

This is the distinction that trips a lot of sites up, and it is worth getting right. AS/NZS 2293.1, currently the 2026 edition, governs illuminated exit signs and emergency escape lighting inside buildings: the backlit EXIT boxes above doors, wired into the building's power and battery backup. That standard has a narrow, specific job.

Assembly point signs and evacuation route signs sit in a different category altogether. They are non-illuminated, and they fall under AS 1319, the broader Australian Standard for safety signs in the occupational environment, under the heading of emergency information signage: the green background, white symbol or text format also used for first aid signage. AS 1319 is explicit that it does not cover the illuminated exit signs that AS 2293.1 handles, and the reverse holds too. Neither standard does the other's job.

In practice, that means an assembly point sign at the back fence and a wired, illuminated exit sign over the fire door are designed to two different standards, made from different materials, for different reasons, even though both use the same green.

Assembly point signs, evacuation route signs and evacuation diagrams

Three sign types cover most of what a site actually needs. An Emergency Assembly Point sign is text only, no arrow and no pictogram: it marks the destination itself. Browse the assembly point signs range for the standard wording options.

Evacuation route signs carry a directional arrow alongside the wording, guiding people at each turn or junction along the path to the muster point. Left-pointing and right-pointing versions of the same sign cover both directions of a corridor or driveway. The evacuation signs range covers both.

Evacuation diagrams are a third, separate product: a floor plan showing the building layout, the nearest exits, the path to the assembly point, and often the location of fire extinguishers and hose reels along the way. They belong in the same conversation as our guide to fire equipment location and fire door signs , since a diagram is only useful if the equipment it shows is where the diagram says it is.

Where each sign belongs on site

An assembly point sign needs to sit somewhere genuinely safe to gather: clear of the building, clear of the car park and any vehicle path, and visible from more than one approach so nobody has to guess which corner of the yard is the right one. Outdoors, that means a weather-resistant substrate such as Colorbond steel or aluminium, post mounted at a height that reads from a distance.

Evacuation route signs work best at decision points: anywhere a corridor branches, turns, or a person could reasonably go the wrong way under pressure. Indoors, rigid PVC or corflute mounted flat on the wall at eye level is standard. Pair them with the site's fire safety signs and exit signage so the whole egress path reads as one system, rather than a scatter of unrelated signs.

Not a legal requirement, but part of a sensible emergency plan

It is worth being precise here. The WHS Regulations require a business to have a documented emergency plan, but that requirement does not specify signage: there is no clause saying an assembly point sign must be installed. What the regulations do require is that the hazard, in this case an uncontrolled evacuation, be managed, and signage is one of the practical controls available to support that plan. Requirements and enforcement approach vary by state and territory, so check with your WHS regulator for anything specific to your site.

In practice, most safety professionals treat assembly point and evacuation signage as a basic, low-cost part of a working emergency plan rather than an optional extra. It is hard to run an effective evacuation drill without a clearly marked destination and a clearly marked path to it.

A quick checklist before you order

• How many assembly points does the site need? A single building might need one. A larger site with several wings or a shared yard might need more than one, each clearly labelled so people know which one applies to them.
• Is the assembly point visible from every realistic evacuation path, not just the one closest to the main entrance?
• Do the evacuation route signs cover every decision point, not only the obvious turns, so nobody freezes at a junction during a drill?
• Outdoors, has the substrate been chosen for weather rather than only for cost, so the sign is still legible in a year's time?
• Does the evacuation diagram match what is actually installed, including fire equipment locations, rather than an older layout of the building?
• Is signage checked at the next scheduled evacuation drill, rather than installed once and left?
