Fire Safety Signs in Australia: Compliance & Placement Guide

Why Fire Safety Signs Matter More Than You Think

In an emergency, every second counts. When smoke fills a corridor or a fire alarm sounds, people don't stop to read manuals — they look for signs. Fire safety signage is one of the most critical components of any building's emergency preparedness, yet it remains one of the most commonly overlooked. Whether you manage a small office, a retail shop, or a large warehouse, having the correct fire safety signs in the right locations could be the difference between a safe evacuation and a tragedy.

This guide covers everything Australian business owners and safety managers need to know about fire safety signage — from regulatory requirements to practical placement advice.

Understanding AS1319 and Fire Safety Sign Requirements

Australian Standard AS1319 sets out the design and placement requirements for safety signs used in workplaces and public areas. Under this standard, fire safety signs fall into the "fire" category and are characterised by a red rectangle with white pictograms and text. This colour coding is consistent across all Australian jurisdictions, making it instantly recognisable to workers, visitors, and emergency responders.

Beyond AS1319, the Building Code of Australia (BCA) and relevant state and territory work health and safety (WHS) legislation also impose requirements on fire signage. For example, the BCA specifies that illuminated exit signs must be installed in buildings where occupants may not be familiar with the layout — including offices, shopping centres, hotels, and hospitals.

Fire safety sign requirements can vary depending on your state or territory and building classification. Always check with your local fire authority to confirm the specific requirements for your premises.

Essential Fire Safety Signs for Every Workplace

Fire Extinguisher Location Signs: These are among the most common fire safety signs you will encounter. They identify the type and location of extinguishers throughout a building. Each extinguisher should have a corresponding wall-mounted sign positioned above it, visible from a reasonable distance. Signs typically include the extinguisher type (water, foam, dry chemical, CO2, or wet chemical) and the classes of fire it is suitable for.

Fire Hose Reel Signs: Fire hose reels are standard in many commercial and industrial buildings. The location sign should be mounted directly above or adjacent to the reel, using the standard red rectangle with the white hose reel pictogram. These signs help both occupants and fire brigade personnel locate equipment quickly.

Fire Door Signs: Fire doors contain fire and smoke within a compartment, slowing the spread and allowing more time for evacuation. Signs typically read "Fire Door — Do Not Obstruct" or "Fire Door — Keep Closed." Propping open a fire door — even briefly — compromises the building's fire compartmentation.

Fire Alarm and Manual Call Point Signs: Manual call points (break glass alarms) should be clearly signed so anyone can activate them in an emergency. The sign should be positioned above or beside the call point, ensuring visibility from multiple angles along the corridor or open space.

Exit Signs and Evacuation Plan Signage

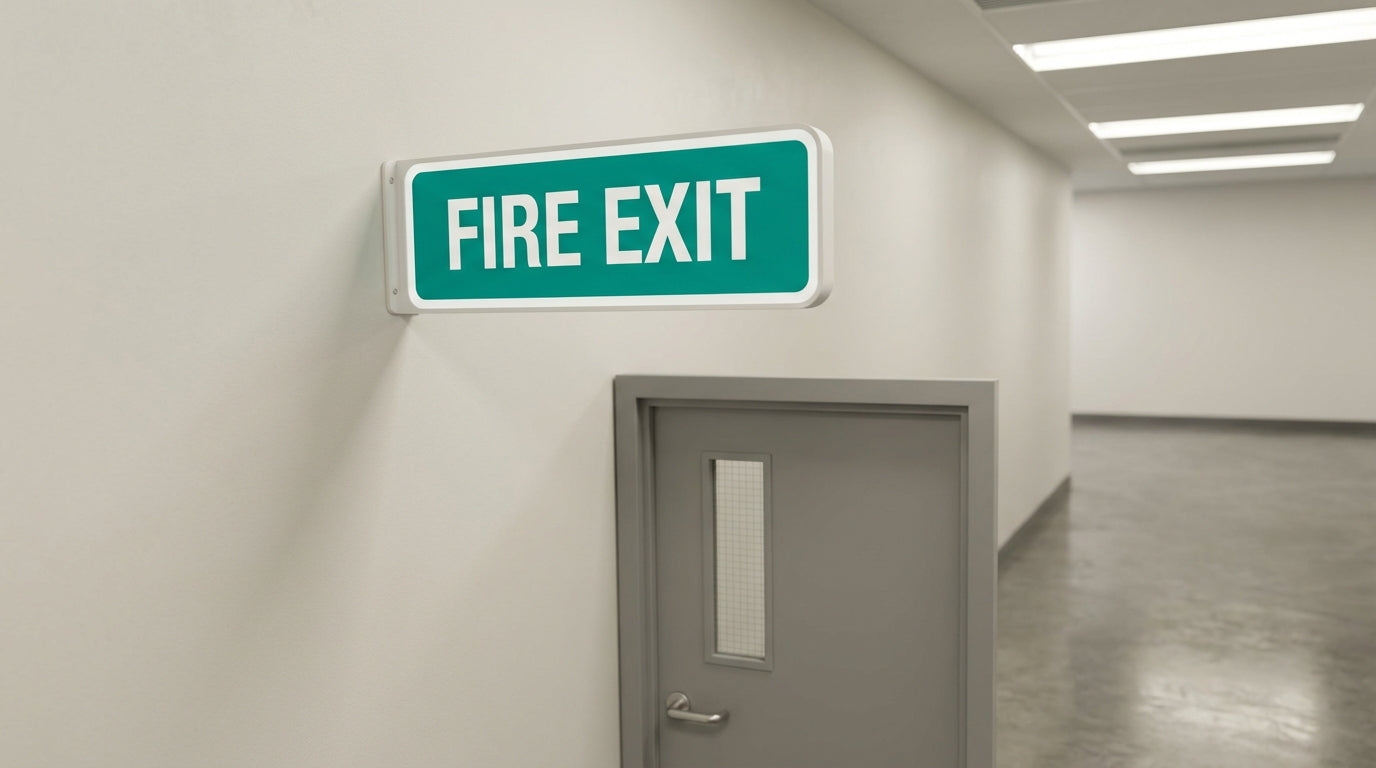

Exit signs are arguably the most recognisable piece of safety signage in any building. Under Australian Standards, emergency exit signs must be green with white pictograms — the running person and arrow design that is now standard internationally. In many buildings, these signs must be illuminated (either internally lit or photoluminescent) to remain visible during power failures.

The placement of exit signs is governed by the BCA and must ensure that from any point within the building, an occupant can identify the direction to the nearest exit. This typically means signs at every change of direction along an escape route, above every exit door, and at intersections of corridors.

Evacuation plan signage is equally important. Each floor of a building should display an evacuation diagram showing escape routes, assembly points, fire equipment locations, and the "You Are Here" marker. These diagrams should be updated whenever the building layout changes and should be positioned at key locations such as near lifts, stairwells, and main entrances.

For businesses with multiple floors or complex layouts, consider installing additional wayfinding signs along escape routes. These are particularly valuable in buildings where visitors or customers may be unfamiliar with the layout.

Requirements by Building Type

Office Buildings: Offices typically require exit signs at all egress points, fire extinguisher location signs, evacuation diagrams on each floor, and fire door signage where applicable. If the office is within a multi-tenancy building, the building manager usually coordinates fire safety signage for common areas, while individual tenants are responsible for their own tenancies.

Retail and Hospitality: Shops, restaurants, and hotels have a higher duty of care because occupants are often unfamiliar with the building. Illuminated exit signs are generally mandatory, and evacuation diagrams should be prominently displayed. Kitchens in hospitality venues also need specific extinguisher signage — particularly for wet chemical extinguishers suited to cooking oil fires.

Industrial and Warehouse Facilities: Large open spaces and high ceilings create unique challenges. Fire signage must be larger and positioned higher to remain visible above racking and stock. These facilities often require additional warning signs for hazardous materials storage, along with evacuation plans that account for vehicle movements and loading dock operations.

Construction Sites: Temporary fire signage is needed during construction, particularly for identifying fire extinguisher locations, emergency exits from partially completed structures, and hot work zones. Construction signs should be reviewed and updated as the site layout evolves.

Common Mistakes in Fire Safety Signage

Signs hidden behind furniture or stock: A fire extinguisher sign is useless if a filing cabinet or stack of pallets blocks it from view. Conduct regular walkthroughs to confirm all signage remains visible and unobstructed.

Faded or damaged signs: UV exposure, cleaning chemicals, and general wear can degrade signs over time. Replace any sign that is faded, cracked, peeling, or otherwise difficult to read. A sign that cannot be read quickly under stress offers no value in an emergency.

Incorrect sign types: Using non-compliant signs — whether sourced from overseas suppliers or printed in-house — can result in failed inspections and, more importantly, confusion during an emergency. Always source signs that comply with AS1319 and relevant Australian Standards.

Outdated evacuation plans: If your office has been refurbished, walls moved, or exits changed, your evacuation diagrams must be updated. An inaccurate evacuation plan is potentially worse than no plan at all, as it may direct people toward blocked or non-existent exits.

Missing signs in new areas: When businesses expand or reconfigure their premises, fire signage is often forgotten. Any new room, corridor, or work area should be assessed for fire sign requirements before it is occupied.

Key Takeaways

• Fire safety signs in Australia follow AS1319 — red rectangles with white pictograms for fire equipment, green with white for emergency exits.
• Every fire extinguisher, hose reel, and manual call point should have a clearly visible location sign.
• Exit signs must be illuminated in most commercial buildings and positioned so occupants can identify escape routes from any point.
• Evacuation diagrams should be current, accurate, and displayed on every floor at key locations.
• Fire door signage reinforces the critical message: do not obstruct or prop open fire doors.
• Conduct regular signage audits to catch faded, hidden, or missing signs before an inspector — or an emergency — reveals the gaps.
